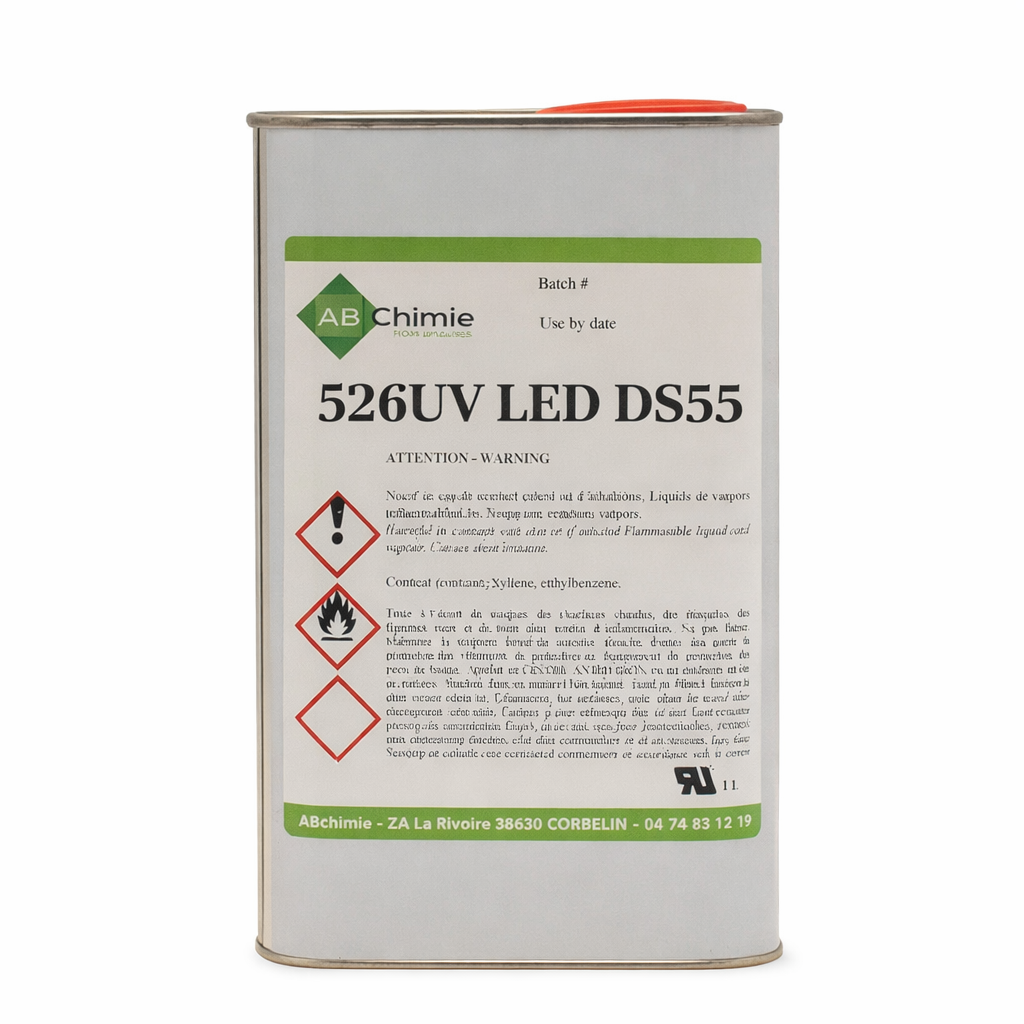

ABChimie 526UV LED DS55

PRODUCT DESCRIPTION

ABchimie 526UV LED DS55 varnish is a transparent, one-component varnish designed to protect printed circuit boards exposed to harsh environments. It features dual-cure technology (UV-LED/humidity) that allows for curing in shaded areas.
It was developed for all applications where a fast process is required.
ABchimie526UV LED DS55 varnish can be applied by dipping, brush, pad printing,
Vaporization and, of course, selective deposition machines, which are the ideal deposition method. The low viscosity of our system allows us to limit the thickness on the board to approximately 80
microns.
ABchimie526UV LED DS55 varnish complies with REACH and RoHS regulations.
A certificate can be drawn up for you upon request at the address: info@abchimie.com.

FEATURES

• Excellent grip in severe weather conditions,
• Fluorescent under ultraviolet light to allow for monitoring of the varnish layer
filed,
• Temperature range from -55°C to +150°C,
• Heat-sealable varnish,
• Mold resistance,
• Excellent dielectric properties,
• IEC NF EN 61086,
• UL94-V0 (QMJU2- E308681),
• NF EN 16101, NF EN 16102 approval
• Ultra-fast polymerization under UV exposure,
• Polymerization of shaded areas with moisture,
• 0 VOC,
• Reduced floor space required compared to solvent-based solutions
• Speed ​​of process, increased productivity,
• Use in selective deposition machines (compatible with SC200, SC280, SC300 and
SC400).
