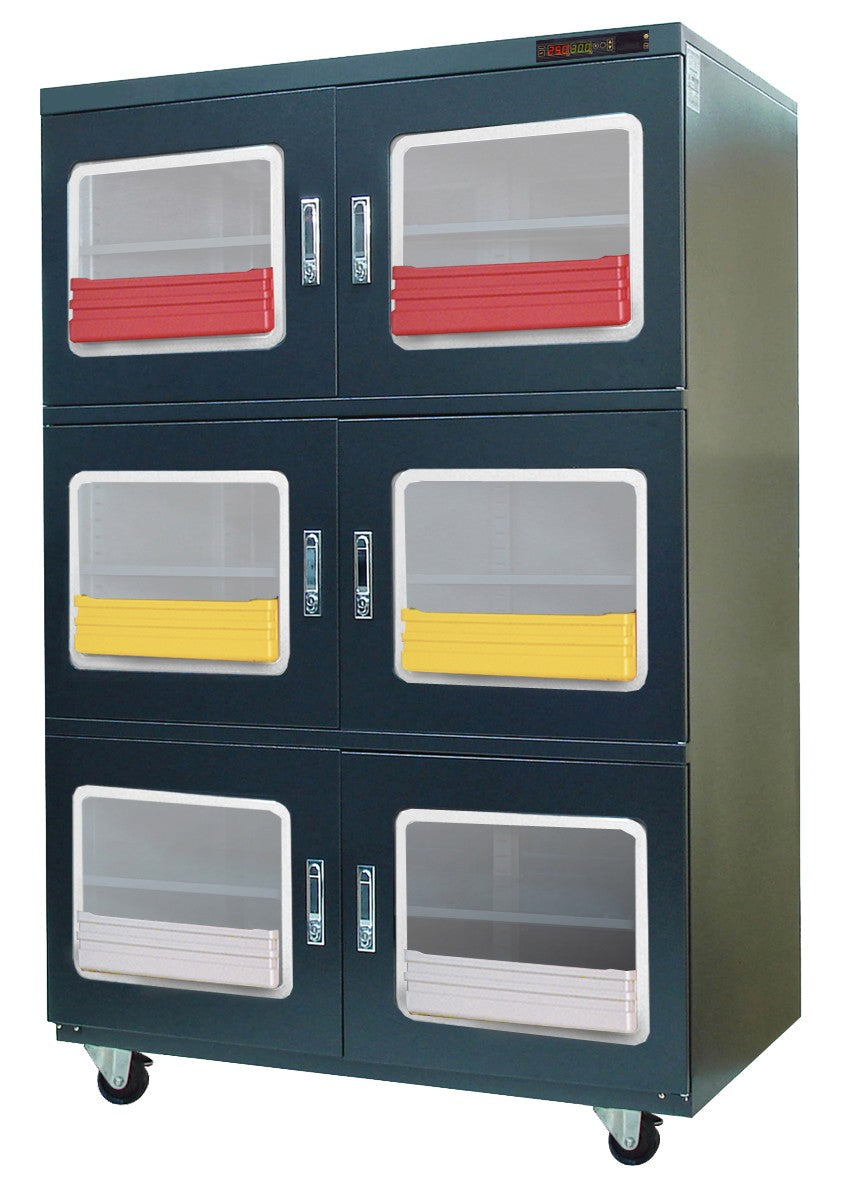

X2B-1200-6 Drying Cabinet Dehumidifier RH ≤ 5%
X2B-1200-6 Drying Cabinet Dehumidifier RH ≤ 5%
The automatic dry cabinets of the "X2B" range are designed to stabilize at a humidity level (RH) ≤ 5% without adjustment in accordance with the recommendations of the J-STD-033D standard applicable to moisture-sensitive SMD components (MSL 2 to 6).
Our cabinets have a modular design (body, power supply, display integrating the probe, dehumidifier modules, shelves…) which allows you to easily change or modify the configuration of your cabinets.
Specifications:
|
Number of doors: |
6 doors |
|
Humidity range: |
≦5%RH |
|
External dimensions (L×W×H): |
1200 × 672 × 1815mm |
|
Volume : |
1475 Liters |
|
Shelves: |
5 |
|
Shelf load capacity: |
100kg |
|
Display accuracy: |
±3%RH; ±1°C |
|
Display resolution: |
0.1%RH; 0.1°C |
|
Humidity management software: |
Humidity Manager for HR and Temp data acquisition |
|
RS-232 port: |
Yes |
|
Light and Sound Alarm |
Yes |
|
Color : |
Black |
|
Structure : |
1mm thick carbon steel and antistatic paint |
|
Doors: |
6, antistatic glass, triple-action handles and magnetic seals |
|
Wheels: |
Four 3" wheels, two of which are bidirectional with brakes. |
|
Grounding: |
1.0MΩ (Length 2 meters) |
|
Static dissipation range: |
10 3 ~10 9 (Surface resistance) |
|
Electricity consumption: |
Max. 585 Wh - Avg. 105 Wh |
|
Supply voltage: |
230V – 50/60Hz |
|
Options: |
|
